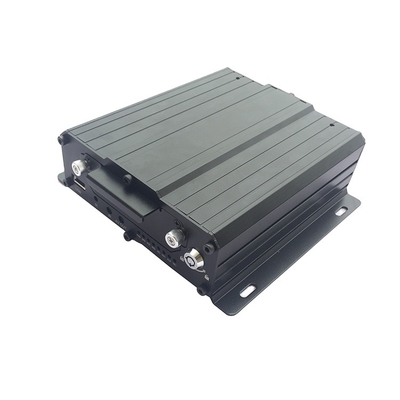

Name: Newest mdvr 4g vehicle wifi map 4 channels sd gps mobile dvr FL-DVR-B804
Brand: Newest mdvr 4g vehicle wifi map 4 channels sd gps mobile dvr FL-DVR-B804
SKU: FL-DVR-B804
Rating: 4.6 (104 reviews)

Caracteristicas Galería Descripción de producto Pida una cita

Caracteristicas

Especificaciones

Model Number: FL-DVR-B804

Warranty: 1 year

Certificate: CE/FCC/Rohs/ISO9001

Type: AHD HDD Mobile DVR

Resolution: Support 1080P/720P/D1/CIF, MAX 8 channels 1080P

Video Compression: H.264 Compression Mode

Video input: 4CH AHD1080P, aviation connector

Video output: 2CH CVBS + VGA output for optional, 1.0Vp-p, 75Î©

Storage: 2.5'' HDD + SD Card,each max 2TB HDD + 128GB SD Card

GPS 3G 4G Wifi: Optional

Software: CMSV6

Información básica

Certificación: CE/FCC/Rohs/ISO9001

Model Number: FL-DVR-B804

Pago y Envío Términos

Packaging Details: Carton box

Supply Ability: 10000 Unit/Units per Month

Descripción de producto

Product Description

Front Panel

1-HDD Lock, it's used for unload hard disk. Device will power off automatically if power on when HDD lock is open 2-HDD Fixed Screw. Please manually tighten screw after installing hard disk drive, to prevent HDD slip out 3-status Indicator LED. Details as below Pwr-power Indicator LED, LED light means system has powered on. GPS-GPS/BD Status indicator light. LED On-positioning success LED FLASH-IN positioning, LED OFF-NO GPS Module. Hot-hard disk heating LED LED ON-HDD is heating, LED OFF-HDD doesn't open heating. SD-SD card Indicator LED. LED On-card is recording, LED FLASH-CARD exists but not recording, LED Off-card does not exist HDD-HDD card Indicator LED LED ON-HDD is recording, LED FLASH-HDD exists but not recording, LED OFF-HDD does not exist Rec-video Recording Indicator LED LED ON-IN the recording: ALM-ALARM Indicator LED, LED ON-IN the alarm Net-network Indicator LED. It changes based on dial-up connection status, details as below: LED OFF-NO communication module LED INTERMITTENT FLASH-SIM CARD does not exist LED QUICK FLASH (1: 1)-device is dialing, LED SLOW FLASH (3: 1-server connection is not OK: LED On-server connection is successful 4-SIM Card and SD Card Slot: (When installation gap towards inside, metal touch spot face down) 5-front audio and video output interface; (Reserved 6-infrared remote control receiving hole, It's used to receive remote controller signal 7-USB Interface It's used to import or export data or upgrade Status LED will alternate loop flash when device power on, it will quick loop flash when device is upgrading Built-in UPS, after devce Power of, PWR LED will be continuously on ten more seconds

Back Panel

1-video&Audio Input interface, 1-4channels or 1-8channels, with DC 12V output 2-24 PIN Extension Port, With alarm input&output, serial port etc, More detailed definition see addenda 3-RJ45 Ethernet port, with print serial port, Can only connect 4PIN net cable when connect net 4-power Input interface, Input Voltage DC 8-36V Red cable connect power positive, Black cable connect power negative; Yellow line ACC signal cable. 5,6,7-3G/4G、 WIFI.、 GPS Antenna Port; 8-VGA high definition output port. (Analog output port is standard definition output) Attention: Audio/Video analog output port is inside the device 16PIN PANEL port When net cable directly connect to the device, only can use 4PIN definition cable, otherwise it will lead device dead

Product Features

1.

H.265 Compression, saves storage costs, smoothly live streaming, clear picture quality, multi-stream recording.

2.

Support one HDD(Max 4TB) and one SD Card (Max 256GB) Storage, completely protect the data from damage.

3.

Watchdog abnormal restart function protection, Better machine and data protection.

4.

Flameout delay recording function, ACC Delay off,can set 24 hours.

5.

On board UPS 8~10 seconds delay power-off for data protection.

6.

Support remote management, voice intercom, fuel monitoring, cut engine remotely function.

7.

Designed with RS232/RS485 and RJ45 peripheral interface.

8.

Allow to integared with Fuel Sensor,Temperature & Humidity Sensor, RFID card-reader,Tire pressure monitor and so on.

9.

8V~36V wide voltage power supply, Overload/ undervoltage/ short circuit protection, low voltage automatic shutdown.

10.

Al-aluminum profile design, small size, fast heat dissiption, dustproof, shockproof.

1080 AHD HDD Mobile DVR Working Diagram

Newest GPS sd card 4 channels vehicle mdvr 4g wifi mobile dvr

Monitor screen

Newest GPS sd card 4 channels vehicle mdvr 4g wifi mobile dvr

Product Advantages

1.The original Haith chip

Further Video Recorder, each of which uses the original industrial-grade Heise chip, can ensure stable operation in the severe cold and heat environment.

2. Humanized USB Interface

Humanized design, easy to operate, user-friendly copy of information, insert mouse/U disk.

3. Support screen switching

Supporting reverse screen enlargement, four-way video switching, providing technical support.

4. Wide Voltage Design

Vehicle broadband power supply can work steadily in the range of DC8V-36V voltage.

Products for vehicles

Product Applications:Bus ,Coach ,School Bus, Truck ,Tanker, Harvester

DVR installed in bus

Newest GPS sd card 4 channels vehicle mdvr 4g wifi mobile dvr

DVR installed in oil truck

DVR installed in taxi

DVR installed in police car

DVR installed in logistics vehicle

Vehicle Survilliance Solutions

Newest GPS sd card 4 channels vehicle mdvr 4g wifi mobile dvr

Four-channel simultaneous recording, smooth picture quality

Support parallel preview and return visit of different channels under multi-screen splitting

Loop recording, automatic coverage

When it detects that the hard disk space is insufficient, the system intelligently deletes the early unlocked screens, without manual operation, you can cycle the recording

3G/4G remote real-time monitoring

Insert a 3G/4G phone card, download the client, you can support multi-device terminal viewing, real-time sharing, remote download,real-time video you want to watch

GPS (Beidou) positioning

Carrying out vehicle positioning through GPS, knowing the location and driving trajectory of the vehicle, realizing the real-time scheduling of the vehicle and improving efficiency

Product Paramenters

Main processor	Hi3521D V100 chipset	High performance chipset
System	Language	Chinese, English, Russian (customerized)
		Operation interface	OSD menu
		Password security	User Password and Administrator Password
CUI	Image OSD	Can be connected to an external AV display and VGA display, Remocontrol operation setting system parameters
CUI				Interface
Audio and video	Video input	4/8-channel video input, 4pin interface, 1.0Vp-p, 750Ω
		Video output	1 channel AV composite audio and video output, 4pin interface, 1.0Vp-p, 750, 1 channelVGA output
		Audio input/output	4/8 input, 1 output,4pin interface
		Compression Format	Encoding format: G726 40KBPS, Sampling rate: 8000 sample bit width, 16bit Sampling points: 320;
		Preview	1/2/4/6/8/9 screen split preview, support manual/event trigger full screen display function
		Resolution	Support 1080P/960P/720P/D1/HD1/CIF, MAX:8 channels 1080p
		Video Quality	1-8 levels, 1 is the highest level, 8 is the lowest level.
		Video Standard	PAL: 100 frames/s, CCIR625 line, 50 games NTSC: 120frames/s, CCIRS25 line,60Games; 1080P:1536Kbps~ 8Mbps, Multi-level image quality optional 720P:1000 Kbps ~ 6Mbps, Multi-level image quality optional Di: 800Kbps ~ 3Mbps, Multi-level image quality optional HD1: 600Kbps ~ 2.5Mbps, Multi-level image quality optional CIF: 256Kbps ~ 1.5Mbps, Multi-level image quality optional
		Video mode	The default: auto recording after power on. Ignition recording, alarm trigger recording and manual recording are supported.
Videostorage	File format	H.265
		File system	Special file system or FAT32
		SD CARD	Support 1xHard Disk( Max 4TB) and 2xSD card(Max 256GB), cyclic recording
		Upgrade method	Support USB flash disk updating 1 SD card upgrade
		Video playback	Search video and video files by recording time, recording mode, etc. Supports up to 4 channels of synchronized playback, pauses, fast forwards, rewinds, supports 2, 4, 8, 16 times faster forward of backward
Alarm	Alarm input	8-channel alarm input with alarm linkage function
		Alarm Output	2-Channel alarm output
		G-Sensor	Support built-in G-SENSOR acceleration sensor, alarm linkage trigger
Port	RS232	2*RS232
		RS485	1*RS485
		RJ45	1*RJ45
		USB	1*USB
Module	3G(Optional)	Built-in 3G module (WCDMA/EVDO/TD-SCDMA)
		4G(Optional)	Built-in 4G module (TD-LTE/FDD-LTE)
		WIFI(Optional)	Built-in WIFI module (2.4G)
		GPS(Optional)	Support Dual Module GPS/BD
Software	CMSV6 Client	4G remote real-time monitoring GPS positioning, remot management, recording, playback, intercom, monitoring, track playback alarm processing.
		Mobile phone terminal	Remote real-time monitoring, GPS positioning. recording playback, intercom, monitoring,and alarm prompts are available anytime and anywhere.
		PC playback	Video playback track playback and analysis
Power	Power management	Wide voltagepower supply Overload 1 undervoltage I shor circuit protection, low voltage automatic shutdown, Support timer switch, delay shutdown function.
		Input voltage	DC:+8V ~ +36V
		output voltage	+12V@1A, +5V@1A
Working environment	Temperature	-20'C to +70"C
Working environment		Humidity	20% to 80%
Size	Machine	200mmx187mmx62mm

MDVR and accessories

Cameras for mobile dvr(optional)

Car camera

Company Profile

Further Technology (Dongguan) Co., Limited is a professional high-tech enterprise for R&D, manufacturing and marketing SD card Mobile DVR, hard drive DVR, 3G/4G/GPS/GPRS/WIFI Mobile DVR/NVR,GPS tracker and CCTV camera, which is the best manufacturer specialized in vehicle security products in China.In China and abroad, we have won a good reputation and had many success stories. In China, more than 2000 transport companies choose our products. Our products are made to meet safety standards such as CE, FCC and RoHS. With more than 12 years of OEM/ODM experience, our manufacturing has successfully supported name brands worldwide with quality products with a strong R&D capability and our qualified products have been exported all over the world covering Asia, North &South America, Europe, Oceania, Middle East countries. We are proud to provide the highest possible level of service to every customer and committed to provide superior quality products at lowest price possible. In addition to our commitment, we continue to keep an update on all our products, making sure it is up to today's technology and to maintain our product are always on top of the market.

Certifications

Packing & Delivery

Carton box

FAQ

1. who are we?
We are based in Guangdong, China, start from 2007,sell to Domestic Market(40.00%),Southeast Asia(10.00%),Eastern Europe(8.00%),North America(7.00%),Northern Europe(7.00%),Western Europe(5.00%),Southern Europe(4.00%),Central America(4.00%),Mid East(4.00%),South America(3.00%),Eastern Asia(3.00%),South Asia(2.00%),Africa(2.00%),Oceania(1.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Mobile DVR,Mobile NVR,People Counter,CCTV Camera,Car Black Box

4. why should you buy from us not from other suppliers?
Further Technology (Dongguan) Co., Limited is a professional high-tech enterprise for R&D, manufacturing and marketing SD card and HDD Mobile DVR/NVR,GPS tracker and CCTV camera,People counter. Our products are made to meet safety standards such as CE, FCC and RoHS.

5. what services can we provide?
Accepted Delivery Terms: EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Russian

6.Does your Company support OEM or ODM service? Yes, our company has our own R&D department, and factory , can support OEM & ODM Service.

7. Does your MDVR System has CE FEE E-Mark? Yes, our MDVR System has CE FEE E-Mark Certifications.

8.How about your quality control? We have a very strict quality inspection step , 100% full Quality inspection

9. What is about your warranty? For MDVRS, the warranty is 12 month, for Cameras,the warranty is 24 month. But actually we give Lifetime maintenance services, over the warranty period, only need to pay the cost of replacement parts , other maintenance services are free.

10.Q:Device keep Rebooting

A:1)Check working power,I flow power device will keep rebooting; 2)HDD/SD Card error, remove storage
device and turn on device checking;

11.Q:Device on with HDD but not recording;

A:1)Check SD/HDD formatted or not;if not please enter Main GUI--System Set--Format,formatHDD/SD Card;

2) Check If close Recording, or set Timed Recording mode, if yes it won(trecording

3) If the HDD is connected well, if yes the HDD/SD light is on.

12.Q: With GPS but no GPS coordinate Information
A:1)Check if GPS module exist;

2) Check GPS Antenna connection,suggest install on the outside place with strong signal;

3) If testing in office, suggest put GPS Antenna out of window;

4) If working environment not good will related to no GPS Information or wrong information;

13.Q:Deviation of GPS Location on Map?

A:The signal is effective if the GPS module has been positioning, there
are so many reasons caused bias, governmentrestriction, permissible error, GPS signal break off, The actual satellite map error occurred for the security, GPS Correction can solve the problem.

14.Q:If using 3G ,what should we concern?

A:1)Choose inside wireless module WCDMA,EVDO,TD-SCDMA, relative module setting is different then SIM Card is different, please make sure the module is corresponding with the SIM Card.

2) If Server IP & Port set correct,if 3G signal strong for dialing;3G dialing successfully or not;

3) Check 3G Antenna connection,dialing will be failed if 3G signal too weak;

4) Check SIM Card 3G Flow

15.Q:Device working but can not see Vehicle and video on client software

A: 1)Check if Center Server running and device Number if using;

2) Check Server IP and Port parameter setting;

3) Check is using 3G or WIFI for connecting, if 3G check the 3G Model WCDMA or EVDO and related SIM card,3G antenna connect normally/APN setting/Center No. setting; If it still can not work,please offer the most detailed information to us for technical support

16.Q:Device Online but can not see video

A:1)Please set Low Sub-stream,when sub-stream set high it will affect the transmission because of the network;

2) Network environment not good;

17.Q: During playback, the map doesn't show?

A: Possible reasons are as follows: Net cable did not connect to PC; Net works, but the computer can not get to the Internet;
